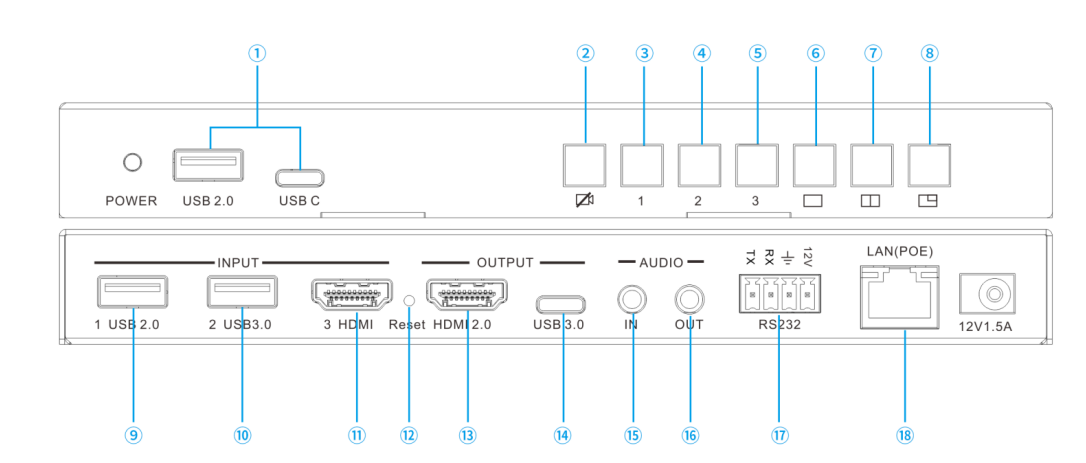

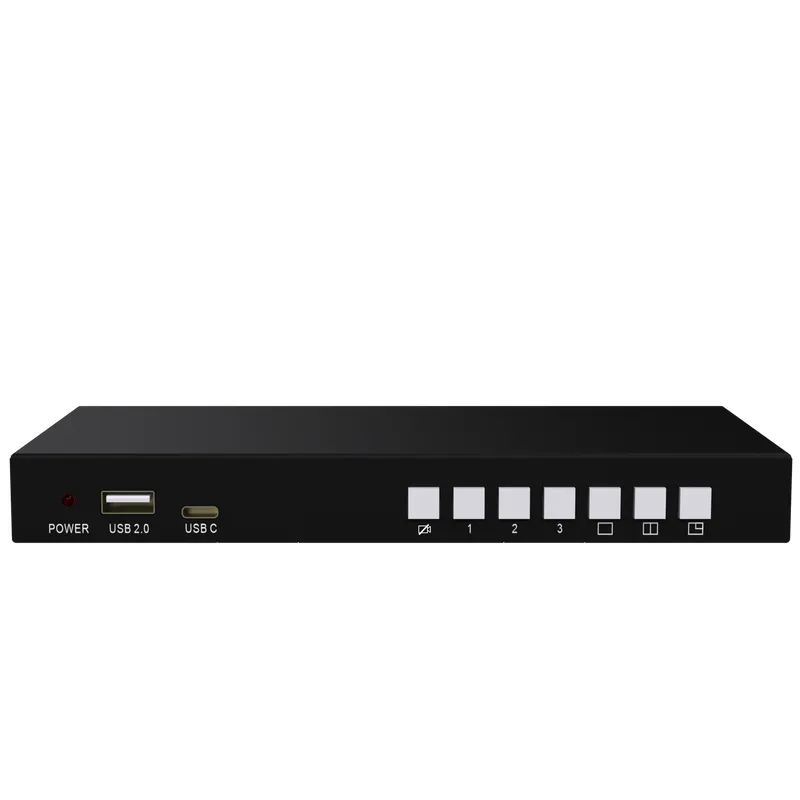

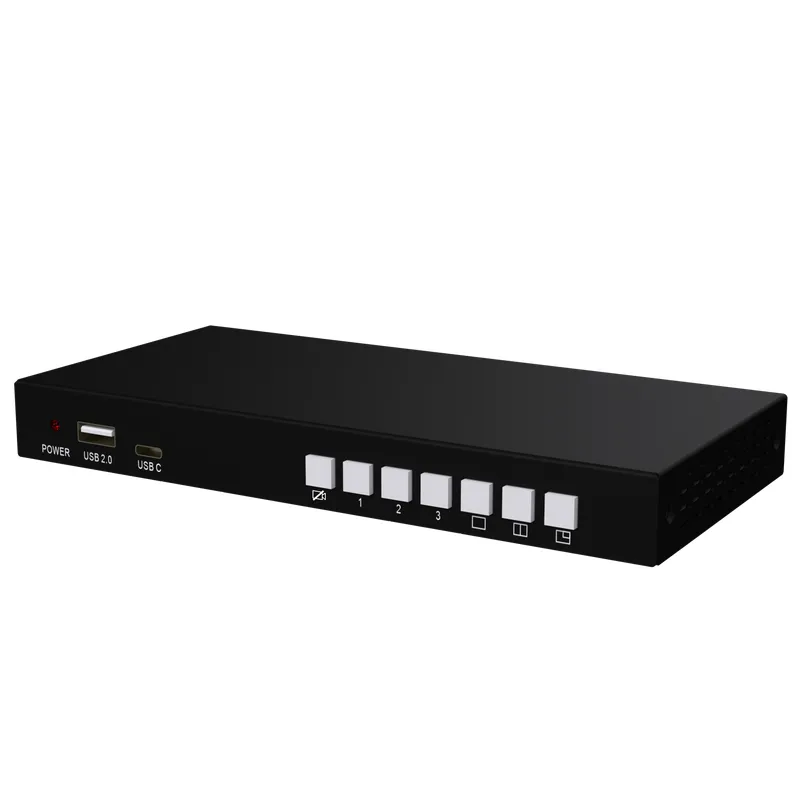

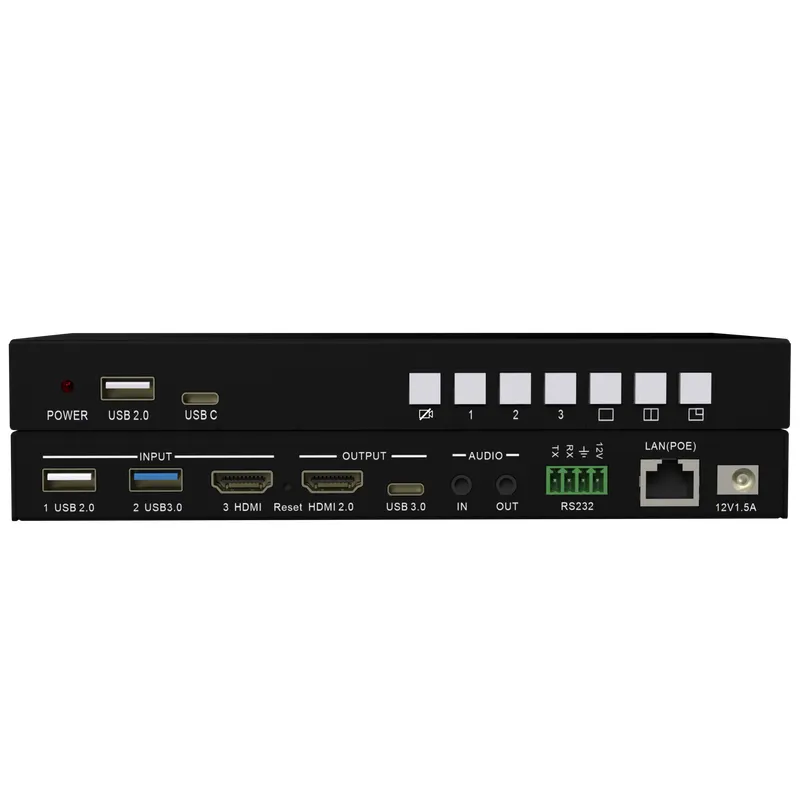

Interface/button description
1 Reserved for future use
2 Mute button
3 Switch the source from USB 2.0
4 Switch the source from USB 3.0
5 Switch the source from HDMI
6 Single view layout
7 Side by side layout
8 Big & small layout

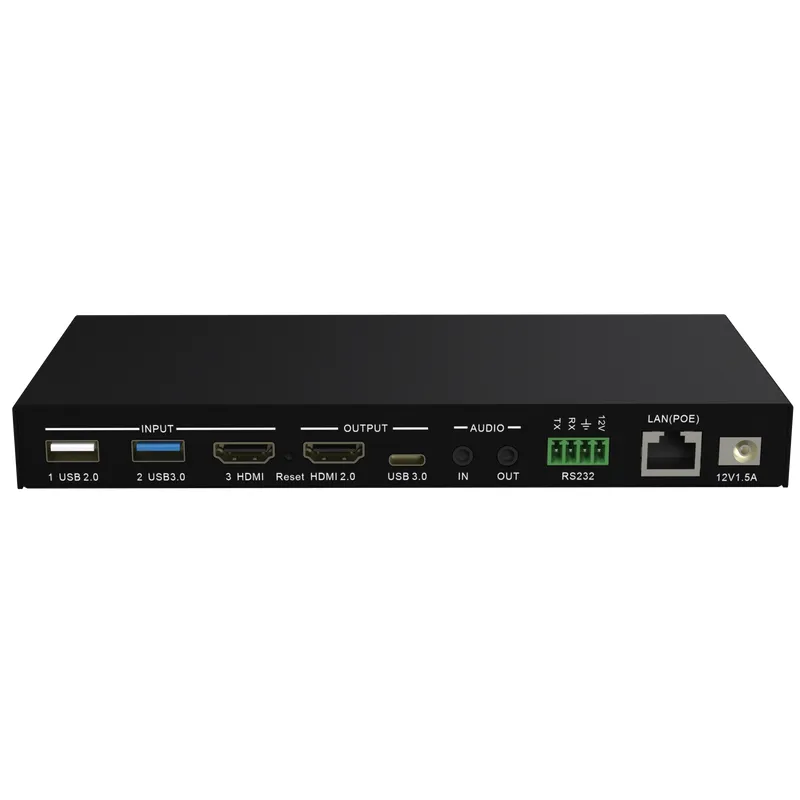

9 1x USB 2.0 camera
10 1x USB 3.0 camera
11 1x HDMI camera or video source
12 Reset
13 1x HDMI 2.0 output for screen
14 1x USB-C output for PC
15 1x line in
16 1x line out
17 1x RS232 for control
18 1x 1000M LAN for control and PoE
VM-10 Key Advantages
-Supports 3 camera sources connection, 1x USB 3.0, 1x USB 2.0, 1x HDMI 1.4
-HDMI input can be any HDMI source like laptop, document camera
-Seamless switching between 3 input sources
-Mix videos from 3 input sources
-Mixed layout can be defined in the web like picture in picture, side by side, big and small.
-1x HDMI 2.0 output for local monitor, 1x USB-C (UVC/UAC) output for PC
-Enable mute video/audio to video conferencing or live broadcasting
-Support overlay company logo or text on the output video (future firmware)
-Audio I/O and mixer through the web
-Controllable by LAN & RS-232
-PoE supported, saving additional PSU
-Cost-effective, reliable and simple to install (no driver required)
-Compact and slim housing design with only 18mm height
System Diagram
